High Speed Cherry Core Pitter Olive Date Core Pitting Machine for Automatic Operation

Name: High Speed Cherry Core Pitter Olive Date Core Pitting Machine for Automatic Operation
Brand: DOMAX
Price: 2 USD

High Speed Cherry Core Pitter Olive Date Core Pitting Machine for Automatic Operation Manufactures

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Food & Beverage Shops, Other

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Motor, Gear

Condition : New

Place of Origin : Henan, China

Brand Name : DOMAX

Voltage : 220V/380V/Customized

Power : 1.5KW

Weight : 350 KG

Dimension(L*W*H) : 1250*1000*1150mm

Warranty : 1 Year

Application : Date Palm

Function : Seeds removing

Type : Automatic

Advantage : Easy Operation High Efficiency

Keywords : Pitting

Material : 304 Stainless Steel

Capacity : 300kg/h

Suitable for : Dates, olive, cherry

Related machine : Sorting machine

Feature : Simple Operation

Price : $2,100.00/sets 1-4 sets

MOQ : 1 set

Contact Now

High speed Dates Seed Removing Processing Machinery Cherry Core Pitter Olive Date Core Pitting Machine

Product Description

High Speed Cherry Core Pitter Olive Date Core Pitting Machine for Automatic Operation

Introduction of pitting machine

The jujube pitting machine is a multi-functional machine, suitable for pitting small fruits such as date palm, jujube, cherry, gray jujube, olive, hawthorn, green plum and so on.jujube, The fruit diameters that can be processed range from 15-45 mm, the pitting efficiency is very high, and the yield can reach 150-250 kg/h. The date palm deseed machine is mainly composed of a roulette (wheel), a silo, a brush, a punching needle, a material outlet, a seed outlet, and a body.

Final Product Pictures

Working principle of pitting machine

When the machine is working, first of all, the materials need to be poured into the feed bin. The brush inside the feed bin will continuously push the materials into the holes on the roulette. The wheel rotates continuously. When it is rotated to the nuclear removal system, the needle is pressed from a high place and pressed into the inside of the fruit to pry the core out. There is a baffle at the bottom of the core-removing part, and a small hole is formed in the baffle, and the core can be dropped out of the small hole and then discharged from the seed outlet. The flesh rotates following the wheel and is discharged from the discharge port. A tray can be placed in each of the seed outlet and the discharge port for collection. The whole machine is very convenient to use, and the working efficiency is 8-10 times of manual.

Features of pitting machine

1.It has an automatic feeding function. Part of the labor can be omitted, and the brush can replace the labor. 2.A wide range of applications. It can be used to complete the enucleation work of hawthorn, olive, jujube, bayberry, date palm, and other fruit. 3.Large output per hour. It can handle 150-250 kg/h. 4.Support customization. Machines can be made according to customer requirements, such as high-quality 304 stainless steel machines, outsourced 304 stainless steel machines, and carbon steel machines. 5.Different molds can be made to handle different sizes of fruit. 6.The whole machine runs smoothly and the operation is simple. An employee can operate 3-4 machines at the same time.

Specification

Model	DSQH-100	DSQH-200
Motor power	1.5kw	1.5kw
Capacity	150kg/h	250kg/h
Voltage	220V/380V/Customized	220V/380V/Customized
Dimension	120010001000mm	120011001300
Weight	260kg	350kg
Function	Can finish pitting and cutting one side at the same time

Note: Holes of the roulette is customized 14-16 16-18 18-20 20-22 22-24 24-26mm ect depends on customer's needs

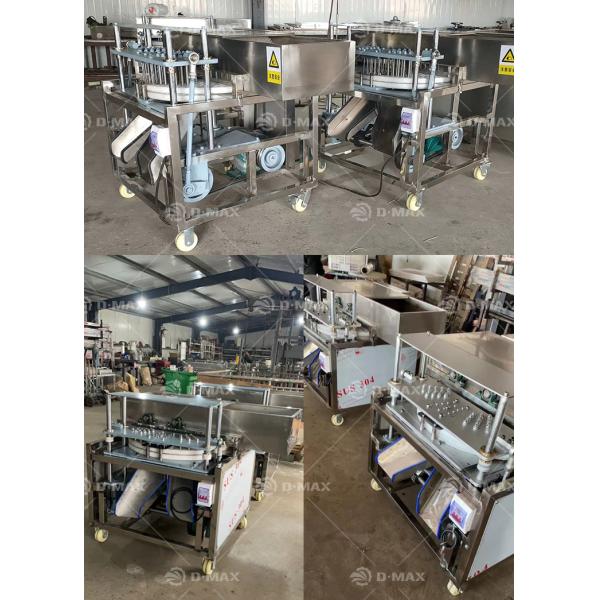

Machine picture display

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
